Comparative Report: EcoSBR vs. Extended Aeration Process for Sewage Treatment
1. Introduction to Sewage Treatment Processes
Wastewater treatment is critical for public health and environmental protection. Among biological treatment methods, the Extended Aeration Process (EA) has long been a popular choice, particularly due to its perceived simplicity and robustness. However, more advanced technologies like EcoSBR are offering significant advantages in efficiency, automation, and overall sustainability. This report details the characteristics of Extended Aeration, highlights its operational challenges (especially concerning operator dependency), and demonstrates how EcoSBR effectively addresses these issues, emphasizing its inherent simplicity, sustainability.
1. 1. Extended Aeration Process (EA)
Extended Aeration is a modification of the conventional Activated Sludge Process. It operates with a very long aeration time (typically 18-30 hours), a high sludge age, and a low food-to-microorganism (F/M) ratio. This extended aeration period aims to promote "endogenous respiration," where microorganisms consume their own cellular material, leading to lower excess sludge production. Like conventional ASP, it involves an aeration tank followed by a separate secondary clarifier.
1. 2. EcoSBR (Sequencing Batch Reactor) Process
EcoSBR is an advanced form of the Sequencing Batch Reactor (SBR) technology. Unlike continuous flow systems, SBRs operate in a batch mode, meaning all treatment stages occur sequentially within a single tank. These stages typically include Fill, React (aeration/mixing), Settle, Decant, and Idle. EcoSBR incorporates specific design elements and intelligent controls, often utilizing advanced biological mechanisms like aerobic granular sludge (AGS), to optimize performance and efficiency across a range of plant sizes and inflow conditions.
2. Challenges of the Extended Aeration Process
While Extended Aeration offers some benefits, it presents several significant challenges, particularly in the context of modern wastewater treatment demands for efficiency, high effluent quality, and reduced operational burden.
2.1. High Dependency on Manually Skilled Operators
One of the most critical challenges of the Extended Aeration Process is its significant reliance on manually skilled operators. Despite its seemingly "simple" design, maintaining optimal performance in an EA plant often requires continuous human intervention and expert judgment.
Process Monitoring and Adjustment: Operators must constantly monitor key parameters such as Dissolved Oxygen (DO), Mixed Liquor Suspended Solids (MLSS), Sludge Volume Index (SVI), and nutrient levels. Adjustments to aeration rates, sludge wasting, and return activated sludge (RAS) rates are frequently necessary to respond to fluctuating influent loads and environmental conditions (e.g., temperature changes). These adjustments are often manual and require an understanding of the complex biological processes at play.
Troubleshooting Biological Upsets: EA systems are still susceptible to biological upsets like sludge bulking (poor settling sludge), foaming, and nitrification/denitrification failures. Diagnosing the root cause of these issues (e.g., filamentous bacteria overgrowth, nutrient deficiency, toxic shock) and implementing corrective actions (e.g., adjusting F/M ratio, introducing chemicals, increasing/decreasing aeration) demands considerable experience and skill. A missed sign or incorrect adjustment can lead to prolonged periods of poor effluent quality.
Mechanical Maintenance: While simpler than some complex processes, EA plants still have mechanical components like blowers, diffusers, and pumps that require regular maintenance, cleaning, and troubleshooting. This necessitates operators with mechanical aptitude and the ability to perform routine checks and minor repairs.
Sludge Management Decisions: Although EA aims to reduce sludge production, operators still need to manage sludge levels, determine optimal wasting rates, and oversee sludge dewatering and disposal processes. These decisions directly impact effluent quality and overall operational costs.
Limited Automation: Many EA plants have limited automation, placing a heavier burden on operators for manual data logging, visual inspections, and physical adjustments.
2.2. Other Common Challenges of Extended Aeration
Beyond operator dependency, EA plants face several other operational and performance issues:
Higher Energy Consumption: The "extended" aeration time, while reducing sludge, means higher capacity of blowers run for long periods, leading to significantly higher energy consumption compared to more optimized processes. This translates directly to increased operational expenditure (OPEX).
Large Footprint: Although often considered compact for smaller flows, the long Hydraulic Retention Time (HRT) and larger space for machine room required for extended aeration still necessitates larger aeration tanks compared to more intensive processes like SBR, contributing to a larger overall footprint.
Effluent Quality Limitations: While good for BOD/COD removal, EA can struggle to consistently meet stringent nutrient (nitrogen and phosphorus) discharge limits without additional, often costly, tertiary treatment steps or specific modifications. Denitrification can be inefficient due to continuous aerobic conditions.
Sludge Settling Issues (Bulking): Despite aiming for lower sludge production, EA systems are still vulnerable to sludge bulking, where the sludge does not settle properly, leading to high suspended solids in the effluent and potential non-compliance.
Vulnerability to Shock Loads: While more robust than conventional activated sludge in some respects, significant fluctuations in flow or organic strength (shock loads) can still upset the biological balance, leading to temporary performance degradation.
Odor Potential: Long aeration times, especially if not perfectly managed, can sometimes lead to localized anaerobic conditions or the release of volatile compounds, contributing to odor issues.
3. EcoSBR: A Solution to Extended Aeration's Pain Points
EcoSBR technology is specifically designed to address and overcome the challenges inherent in processes like Extended Aeration, offering a more efficient, automated, and sustainable approach to wastewater treatment.
3. 1. Overcoming Operator Dependency through Advanced Automation
EcoSBR's core strength lies in its advanced automation and intelligent control systems, which significantly reduce or eliminate the need for manually skilled, full-time operators.
Integrated Process Control: All treatment phases (Fill, React, Settle, Decant, Idle) are precisely controlled by a Programmable Logic Controller (PLC) or microcontroller. This eliminates the need for manual adjustments to valves, pumps, and blowers between phases.
Resilient Sludge Management with Automated Sludge Age Control: The activated sludge, and particularly aerobic granular sludge (AGS), employed in EcoSBR is highly resilient and robust. A critical advantage is the ease with which sludge age (Mean Cell Residence Time - MCRT) can be precisely altered and controlled by varying the sludge recycle/removal time through the automation system. This automatic adjustment allows the plant to adapt its biomass activity to changing influent loads and desired treatment goals without requiring constant manual calculation or intervention. This ensures optimal biological performance and stability, a complex task that heavily relies on skilled operators in EA systems.
Sensor-Based Optimization for Large Plants: In larger EcoSBR plants, the system can optionally incorporate advanced online sensors such as pH, Dissolved Oxygen (DO), and Oxidation-Reduction Potential (ORP). These sensors provide real-time, highly accurate data to the central controller. This data allows for dynamic, on-the-fly adjustments to aeration intensity, mixing duration, and overall cycle times, ensuring optimal efficiency and treatment performance even with varying and complex industrial or municipal loads. This sophisticated feedback loop significantly enhances process stability and effluent quality, reducing reliance on manual data collection and interpretation.
EcoSave Mode & Volumetric Load Variation: Alternatively, in all EcoSBR installations the inbuilt "EcoSave" mode is particularly advantageous. This intelligent feature efficiently manages the significant volumetric load variations that commonly occur during low inflow conditions (e.g., night-time flows, weekend lulls, or seasonal dips in resorts or residential complexes. Instead of operating continuously at full capacity, EcoSave mode automatically adjusts treatment cycles and aeration to match the reduced load, preventing over-aeration, conserving energy, and maintaining optimal biological conditions without any manual intervention.
Flexible Aeration for Improved Treatment: Regardless of plant size, EcoSBR offers inherent flexibility to increase or decrease aeration based on specific needs for improved treatment. This dynamic control allows operators (or the automated system) to respond to sudden changes in organic load or to achieve higher levels of nutrient removal (e.g., by extending aerobic phases for enhanced nitrification or creating anoxic periods for denitrification through controlled aeration cessation). This flexibility improves energy efficiency ensuring target effluent quality is met.
Automatic Fault Detection & Logging: The controller continuously monitors system components. Any abnormal functions or equipment failures (e.g., blower malfunction) are immediately detected, logged, and an alarm is triggered. This allows for proactive maintenance and minimizes downtime, reducing the need for constant human vigilance.
Remote Monitoring & Management (IoT): Many EcoSBR systems are equipped with optional IoT capabilities, allowing for remote monitoring, data analysis, and even remote control from a centralized location. This enables supervisors to oversee multiple plants without being physically present, reducing travel costs and response times, which is highly beneficial for distributed plants.
Simplified Troubleshooting: With detailed event logs and automated diagnostics, troubleshooting becomes much simpler. Operators can quickly identify the exact point of failure or deviation, reducing the time and skill required for problem resolution.
This level of automation fundamentally shifts the operator's role from constant manual intervention to primarily supervision, periodic checks, and responding to system-generated alerts, vastly reducing the dependency on highly specialized and continuously present personnel.
3. 2. Simplicity in EcoSBR Design
The design philosophy of EcoSBR contributes significantly to its ease of operation and maintenance:
Single Reactor Design: By integrating all treatment stages within a single tank, EcoSBR eliminates the need for multiple separate tanks (aeration, clarifier, etc.) and the complex interconnecting pipework and pumping stations often seen in EA plants. This simplifies civil construction and reduces the overall physical footprint.
Minimal Mechanical Components in Wastewater: EcoSBR designs strategically minimize or completely eliminates mechanical moving parts within the wastewater itself. Technologies like airlift pumps (which use compressed air to move water) replace traditional mechanical pumps for raw sewage transfer, decanting treated water, and sludge return. This vastly reduces issues like clogging, wear and tear, and the need for frequent maintenance associated with submerged mechanical equipment.
Modular and Scalable Design with Multiple Reactors: EcoSBR systems are inherently modular. For plants larger than 500 KLD, it's common to have multiple reactors (e.g., up to 4 or more) operating in parallel. This offers significant advantages:
Reduced Need for Large Collection and Buffering Tanks: With multiple reactors operating on staggered cycles, incoming flow can be more effectively distributed and buffered across the system, significantly reducing the need for very large upstream collection or equalization tanks that are often required in continuous flow systems to handle peak flows.
Continuous Clear Water Removal: The staggered operation of multiple reactors means that while one reactor is in a 'React' or 'Settle' phase, another can be in its 'Decant' phase. This allows for continuous removal of treated, clear water from one of the reactors at all times. This eliminates the intermittent discharge typical of single-reactor SBRs and reduces the need for large downstream filter feed tanks or higher capacity filtration systems that must handle surge flows, providing a more consistent feed to any tertiary treatment units.
Operational Flexibility and Redundancy: Multiple reactors provide immense operational flexibility. If one reactor requires maintenance or is temporarily taken offline, the others can continue to operate, ensuring uninterrupted treatment. This built-in redundancy enhances plant reliability.
3. 3. Sustainability of EcoSBR Process
EcoSBR excels in various aspects of sustainability, making it an environmentally and economically responsible choice:
Superior Energy Efficiency: The precise, intermittent aeration control based on actual load (including the EcoSave mode for low loads) significantly reduces power consumption compared to continuous aeration in EA. This not only lowers operational costs but also reduces the carbon footprint associated with energy generation.
Reduced Sludge Production & Easier Management: While EA aims for low sludge production, EcoSBR, especially with its advanced biological processes (e.g., AGS), can achieve even lower excess sludge volumes. The sludge produced often has better dewatering characteristics, simplifying subsequent sludge handling and disposal, and reducing associated costs and environmental impact.
High-Quality Effluent for Reuse: EcoSBR is designed to achieve very high effluent quality, consistently meeting or exceeding stringent discharge norms for BOD, COD, SS, and crucially, nutrients (nitrogen and phosphorus). This high-quality treated water is often suitable for various reuse applications (e.g., irrigation, toilet flushing, industrial cooling), conserving freshwater resources.
Chemical-Free Operation: EcoSBR relies predominantly on biological processes for treatment, minimizing or eliminating the need for chemical addition for coagulation, flocculation, or nutrient removal, thereby reducing chemical costs and the generation of chemical sludge.
Resilience and Robustness: The batch operation and intelligent control make EcoSBR highly resilient to variations in influent flow and organic loads. This robustness ensures consistent performance even under challenging conditions, preventing environmental non-compliance.
3. 4. Additional Advantages of EcoSBR
Beyond directly addressing EA's pain points, EcoSBR offers several other many advantages:
Superior Nutrient Removal (N & P): The ability to create precise aerobic, anoxic, and even anaerobic conditions within a single tank allows for highly efficient biological nitrogen and phosphorus removal without the need for complex external systems or chemical dosing. This is a critical advantage as discharge regulations become stricter.
Excellent Effluent Clarity and Stability: The dedicated quiescent settling phase in SBRs, combined with often superior sludge characteristics (like those from AGS), results in exceptionally clear and stable effluent, consistently achieving very low suspended solids.
Space Efficiency: The integrated nature of the SBR process means a smaller physical footprint per unit of treated water compared to EA, making it ideal for urban environments or locations with limited available land, a common constraint.
Lower Overall Life-Cycle Costs: While initial capital costs might be comparable or slightly higher than very basic EA systems, the significant savings in energy consumption, reduced sludge disposal costs, minimal operator intervention, and lower maintenance requirements often lead to substantially lower overall life-cycle costs for EcoSBR. This long-term cost efficiency is a major draw for municipalities and private entities.
Odor Control: Optimized aeration strategies and the contained, batch nature of EcoSBR tanks contribute to better odor management compared to large, EA tanks where continuous aeration might sometimes lead to localized odor issues.
4. Comparative Data and Trends
To illustrate the differences, consider the following generalized data representing typical performance. Note: Actual values can vary based on specific design, influent characteristics, and operational practices.
Table 1: Operational & Performance Comparison: Extended Aeration vs. EcoSBR

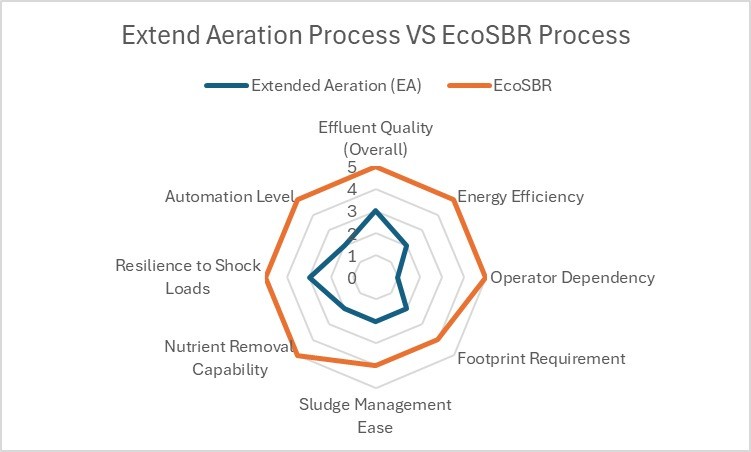

5. Visualizing EcoSBR vs. Extended Aeration with a Spider Web Chart
For factors like "Operator Dependency" or "Footprint Requirement," a higher score on the chart implies less dependency or a smaller footprint, making the larger polygon always more favourable. The considered factors are,
Energy Efficiency: 1=High Consumption, 5=Low Consumption (i.e., higher score means more efficient)
Effluent Quality (Overall): 1=Poor, 5=Excellent
Operator Dependency: 1=High Dependency, 5=Low Dependency (i.e., higher score means less dependency)
Footprint Requirement: 1=Large, 5=Small (i.e., higher score means smaller footprint)
Sludge Management Ease: 1=Complex/High Volume, 5=Simple/Low Volume
Nutrient Removal Capability: 1=Poor, 5=Excellent
Resilience to Shock Loads: 1=Low, 5=High
Automation Level: 1=Low, 5=High
This visually demonstrates EcoSBR's superior performance across most key aspects, especially in areas like operator dependency, energy efficiency, and nutrient removal.
6. Conclusion
The Extended Aeration Process, while a foundational biological treatment method, faces considerable challenges in meeting contemporary wastewater treatment demands. Its high energy consumption, larger footprint, and, most notably, its significant dependency on manually skilled operators for continuous monitoring, troubleshooting, and adjustments, represent substantial operational and financial burdens.
In contrast, the EcoSBR process is an efficient and sustainable alternative. Its inherent simplicity in design (single reactor, minimal submerged mechanical parts) and advanced automation directly address the pain points of Extended Aeration. By leveraging features like optional sensor integration and the inbuilt "EcoSave" mode to intelligently manage volumetric load variations during low inflow conditions, EcoSBR drastically reduces the need for continuous manual intervention. The flexibility to increase or decrease aeration based on specific treatment needs further enhances its adaptive capabilities. The resilience of its activated and aerobic granular sludge, coupled with the automated control of sludge age, allows for superior and more stable biological performance without complex manual adjustments.
Crucially, for larger installations exceeding 500 KLD, EcoSBR's modular design with multiple reactors offers unique advantages. This configuration reduces the need for large collection and buffering tanks upstream and enables continuous clear water removal from one of the reactors at all times. This not only minimizes the requirement for larger filter feed tanks but also allows for the use of lower capacity, more consistently operating filtration systems, streamlining post-treatment processes. This comprehensive automation shifts the operator's role to supervision and proactive maintenance, effectively overcoming the dependency on highly skilled, constantly present personnel.
Furthermore, EcoSBR's sustainability credentials—demonstrated in significantly lower energy consumption, reduced sludge production, and the consistent delivery of high-quality effluent suitable for reuse—place it as an environmentally responsible and economically viable solution for present and future wastewater treatment needs. The objective analysis presented here, including the comparative data and the detailed conceptual spider web chart, underscores that EcoSBR not only offers superior treatment performance but also embodies a more efficient, reliable, and automated approach, paving the way for smarter and more sustainable wastewater management.
